HF and VHF Tactical Manpack Packages

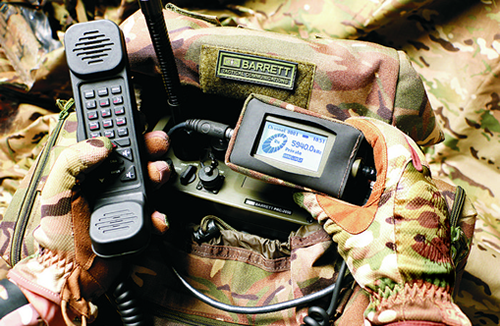

Barrett produce HF and VHF tactical manpack packages, namely the PRC-2090 HF and PRC-2081+ 25 W VHF manpack packages, both rugged and easy to use systems.

The PRC-2090 is a rugged, fully featured tactical HF transceiver solution that delivers proven field deployable secure communications with unparalleled reliability. Designed for operation in the toughest of environments, the PRC-2090 complies with MILSTD 810G for shock and vibration, is immersible to a depth of 1 m, and can be operated in extremes of temperature from –40 °C to +70 °C. This HF tactical manpack package is ideal for extended portable field operations, providing the tactical user with effective, secure and comprehensive communications with remote sited command locations. The standard package comprises of a PRC-2090 HF tactical transceiver, advanced tactical handset, 16.8 V 10 Ah Li-ion battery pack, single wire counterpoise earth kit, AC/DC charger, long wire throw out antenna, framed backpack for manpack, and collapsible whip with gooseneck.

The PRC-2081+ 25 W manpack upgrades the PRC-2080+ transceiver with increased power and communication range. The PRC-2081+ is a military grade manpack communication set specifically designed for tactical applications and designed to withstand complete immersion, vibration, drop and temperature extremes to MILSTD 810G. The standard package comprises of a PRC-2080+ VHF transceiver, VHF 25 W manpack dock, 10 Ah 16.8 V Li-ion battery pack, AC/DC charger, collapsible section whip, tape whip antenna, advanced tactical handset, and framed backpack.

PRC-2090 HF Specifications:

Frequency range: 1.6 MHz to 30 MHz TX, 250 kHz to 30 MHz RX (reduced sensitivity 250 kHz to 500 kHz)

Channel capacity: up to 500 programmable channels

Operating modes: J3E (USB, LSB) – H2B (AM) – J2A (CW) – J2B (AFSK)

Frequency stability: ± 0.5 ppm (± 0.3 ppm optional)

Sensitivity: -120 dBm (0.224 μV) for 10 dB SINAD – J3E Mode pre-amp on

Frequency hopping: 5 or 25 hops per second

RF connections: whip or long wire using internal automatic antenna tuner or 50 ohms connector

RF output power: 30 W PEP, 10 W PEP (125 W PEP) when in vehicle or base docking station (voice duty cycle only)

Operating temperature: -30 ° to 70 °C, humidity 95% relative, non-condensing

Programming: RS-232

Weight (2090 transceiver with 10 Ah lithium-ion battery cartridge): 5.22 kg

Standards: meets AS/NZS4770:2000, CE, and MILSTD 810G for immersion, shock, vibration, dust and spray

PRC-2081+ 25 W VHF Specifications:

Frequency range: 30 MHz to 88 MHz

Channel resolution: 25 kHz

Channels: 10

Squelch: 150 Hz tone squelch

Display: backlit LCD graphics display

Programming: PC programming software, fill gun, cloning cable, tactical handset

BITE: advanced module diagnostics and error reporting

Output power: 5 W / 500 mW / 50 mW (selectable)

Modulation: FM (F3E) digital

Output power: 25 W

Weight (with backpack frame and battery pack): 7.7 kg

Operating temperature: -30 ° to 60 °C

Standards: meets MILSTD 810G for drop, shock, vibration and immersion
