Settop M1 Monitoring Solution

Settop M1 Monitoring Solution

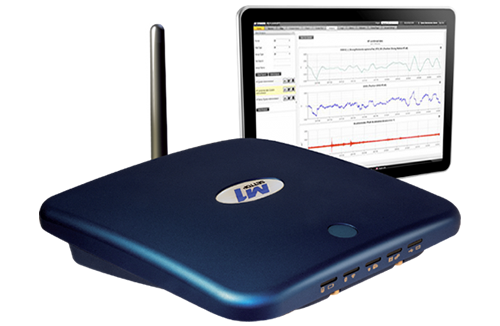

A product of SETTOPSurvey’s commitment to continuous innovation in the development of topographic monitoring equipment, the Settop M1-15 is a communication device for remote total station monitoring during static and dynamic monitoring tasks, for use with a Trimble S series total station with Finelock. Designed to work independently and autonomously in topographic monitoring projects, being an extremely useful tool in engineering and mining projects, the Settop M1-15 can be connected via wi-fi, Bluetooth, radio, Ethernet, or GSM with SETTOPSurvey’s exclusive IST Connect cloud service. Based on the Settop M1 receiver, though without the integrated radio and GNSS/GPS technology, the Settop M1-15 allows you to directly connect a variety of additional sensors, and record complete and precise measurements in any project you undertake. Thanks to this unique feature, the Settop M1-15 can do much more than a traditional GPS modem. In addition, its compact design and anodised aluminium casing make the Settop M1-15 both robust and light, and its IP67 certification for resistance to dust and moisture guarantee its functionality in all weather conditions.

Key Features:

  • Facilitates the installation of a 24 hr/day, independent monitoring system
  • All data is stored in the internal memory
  • Continuous internal monitoring of the automatic functionalities (Watchdog)
  • Automatic power-up - the system restarts automatically after any loss of power or break in the electrical current
  • Security - designed to minimise virus attacks (OS Linux)
  • Precision - automatic detection of connected sensors
  • Resistance - single piece anodised aluminium casing is lightweight and compact
  • Low energy consumption - enters hibernation mode between data registrations
  • Compatibility - multiple power connection modes and data transmission options (wi-fi, Ethernet, cable, Bluetooth, USB, etc.)
  • Flexibility - the system accepts multiple configurations
  • Configurable without software (WebUI)
  • Savings - avoid the purchase of expensive and uncontrollable fixed IPs. The Settop M1-15 only requires a SIM card with data and a dynamic IP, thanks to SETTOPSurvey’s exclusive IST Connect service


  • Unable to view PDF, this browser does not support PDFs. Please download the Datasheet to view it.
