HF Manpack Packages

Codan manpack transceivers are a reliable, rugged and a secure solution for portable long distance HF voice and data communications. Systems available are the Sentry-H 6110-MP, 2110 and 2110M, all of which are extremely light and deliver low power consumption. Comfortable to carry and packed with easy to use features, Codan manpacks are ideal for all types of terrain and operational conditions, complying and exceeding with the toughest environmental standards including MILSTD 810G.

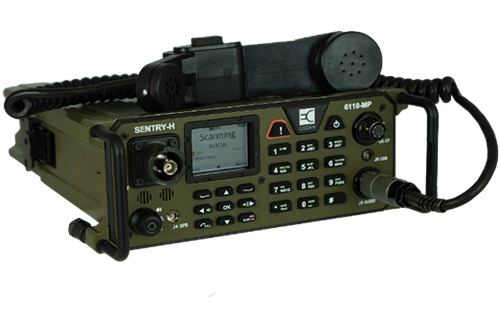

The Sentry-H 6110-MP delivers a rugged and waterproof MILSTD 810G design man-portable Software-Defined Radio (SDR) solution for military organisations that demand uncompromised, secure voice and data communications while on the move. The 6110-MP forms an integral part of the Sentry-H product family that meets the demands of the modern battlefield whilst offering full backwards compatibility with legacy products. The 6110-MP is one of the smallest, lightest form factor manpack HF radios available, delivering a powerful 30 W RF power and up to 55 hours of battery life in less than 5 kg of weight without compromise on any capabilities. Other key features include a smart handset with colour display and integrated GPS, dual handset control, multi-language user interface, dedicated sound and light controls for tactical awareness, built in front panel speaker, IP connectivity over Ethernet/wi-fi and USB, and digital voice message call.

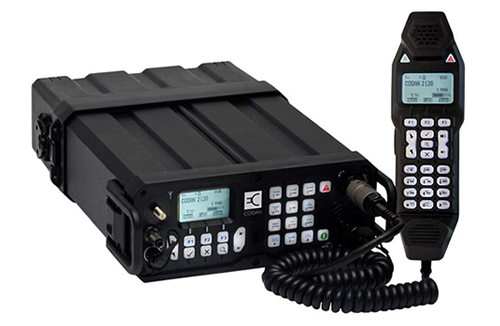

The Patrol 2110 manpack is rugged and light, offers extended capability and flexibility to users for their tactical requirements, and delivers the lowest power consumption of any available manpack radio, meaning you can operate continuously on a single charge for up to 65 hours. With second-generation Digital Voice and rugged smart handset, you have the confidence to communicate anywhere and anytime without the need for existing infrastructure. The Patrol 2110 fully complies with MILSTD 810F standards, and the Patrol smart handset enables remote operation of the Manpack, with all the capability of the front panel now available in the palm of your hand. Other key features include custom designed handset accessories for flexible configurations, secure voice and data communications (AES-256), advanced ALE calling standards including 3G ALE (STANAG 4538), interoperability with other military transceivers, a smart and fully automatic antenna tuner, and GPS location and tracking.

The Patrol 2110M is rugged and light, offers extended capability and flexibility to users for their tactical requirements, and with compliance to MILSTD 188-141B ALE, FED-STD-1045 ALE, Digital Voice, interoperability with commercial and other military grade radios, frequency hopping, and voice encryption, it is a true manpack radio. The Patrol 2110M eliminates the need to carry heavy spare batteries, operating continuously for up to 65 hours using Codan's intelligent battery system, and the Patrol smart handset enables remote operation of the manpack, with all the capability of the front panel now available in the palm of your hand. Other key features include custom designed handset accessories for flexible configurations, a smart and fully automatic antenna tuner, and GPS location and tracking.

Sentry-H 6110-MP Specifications:

Frequency range: transmit 1.6 to 30 MHz; receive 250 kHz to 30 MHz

Power output: 30 W RF ±1 dB (two-tone or voice), user-programmable in 1 W steps (low/medium/high)

Channels: up to 1000 entries

Contacts: up to 500 entries

HF networks: up to 20 networks (simultaneous scanning)

Input voltage range: 13.8 V DC nominal, negative earth; functional range 10 V to 17 V DC

Frequency stability: ±0.3 ppm for –30 ° to 60 °C

Programming: TPS-M Radio Programming Software, USB memory device

Temperature range: operational at –30 ° to 60 °C; 95 % RH maximum, non-condensing

Environmental standard: MILSTD 810G including immersion, shock, drop, vibration, humidity, high temp, low temp, blowing dust, salt fog, fungus, contamination and altitude

Compliance: CE, FCC Part 90, AS/NZS 4770, AS/NZS 4355, MIL-STD 461-G

RF modes: Single Sideband USB, LSB (J3E), AM (H3E), CW (J2A), AFSK (J2B), FSK (F1B), ISB (B7D or B2B), Software-Defined

RF duty cycle: 100 % voice and data

Automatic Link Establishment (ALE): FED-STD-1045; MILSTD 188-141B; STANAG 4538 3G ALE

Data: MILSTD 188-110A/B (STANAG 4539) data capability with data rates up to 19k2 bps

Selcall: CCIR 493-4 proprietary and open standard

Vocoder: MELPe (1200/2400 bit/s); TWELP (300/480/600/1200/2400 bit/s)

Interfaces: handset interface, DC supply (battery), USB (front panel and Handset), H-250 audio (powered), GPS antenna, Antenna, Ethernet via adaptor (TCP/IP, supports remote control)

Encryption: AES-256 digital voice and data (256 keys, direct entry and programmable via Codan KMS/KFS & USB memory stick); CES-128 voice (97 x 16-digit keys, direct entry and programmable via Codan KMS/KFS & USB memory stick, 4-digit session PIN)

2110 and 2110M Specifications:

Frequency range: transmit 1.6 to 30 MHz, 10 Hz steps; receive 250 kHz to 30 MHz, 10 Hz steps

Power output: 25 W PEP (High)/5 W PEP (Low) selectable

Channel capacity: with MIL-STD-188-141B ALE (JITC waveform) option 600 channels, 20 networks; without MIL-STD-188-141B ALE option 400 channels, 10 networks

Scanning: configurable up to 8 channels per second

Linking and data: 3G ALE (STANAG 4538) including FLSU, HDL, LDL, CAST (Codan Adaptive Signalling Technology), MIL-STD-188-141B ALE, MIL-STD-188-110A/B, STANAG 4539, 75 to 9600 bit/s

Vocoder: MELPe (1200/2400 bit/s); TWELP (600/1200/2400 bit/s)

Operating temperature: –40 ° to 70 °C, full spec –30 ° to 60 °C

Frequency stability: ±0.5 ppm for –30 ° to 60 °C

Clarifier: 10 Hz

Power source: 12 V DC (10.8 to 15 V operational)

Environmental standard: MILSTD 810F including shock, vibration, humidity, immersion (1 hr at 1 m), altitude, fungus, salt fog, sand and dust, blowing dust and rough handling

EMC: complies with MILSTD 461

Transceiver conformance: exceeds or meets requirements of AS/NZS 4770:2003, CE, NTIA and FCC

Interfaces: USB (full opto-isolation) or RS232

RF modes: USB/LSB (J3E), AM (H3E), AFSK (J2A), CW (JIA)

Encryption: CES-128, 97 x programmable 16-digit keys, 4-digit PIN; AES-256, 256 x programmable 256-bit keys
